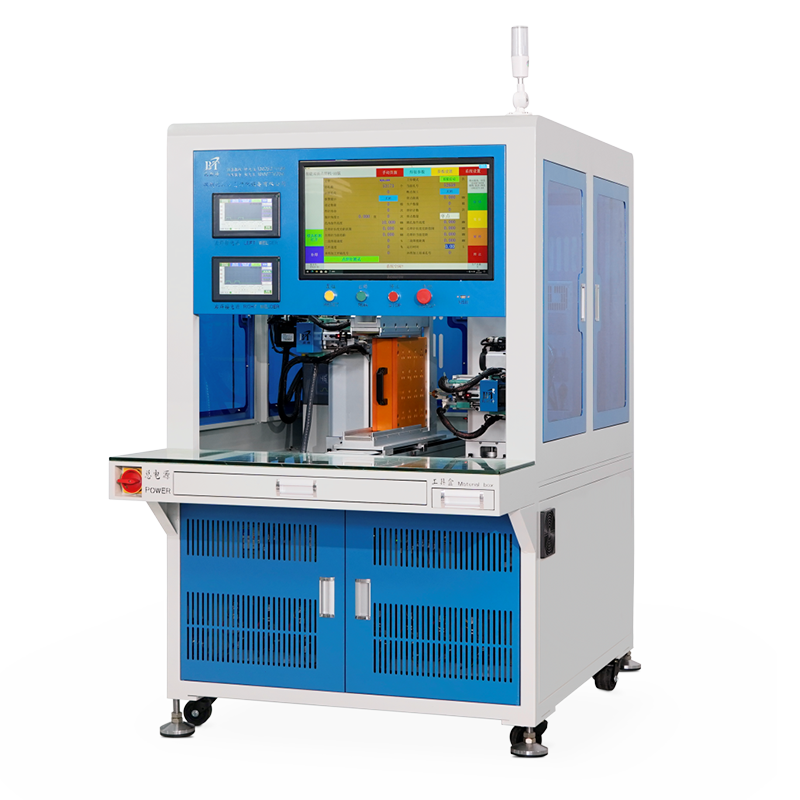

BT-850B-XZ-10000A Transistor (7-axis Computer version) Double-sided automatic spot welding machine -A
2025-11-20 11:19:33
Product features：
Automalic welding,solder joints are even,good onsistency,improve the gualfcahion rate.
Standard spot welding spot can be selected (different currents can be set for positive and negative poles)
Spotwelding coordinates can use Udisk to import parameters
The operating mechanism adopts servo motor with linear module for
Al can learn to set the welding positions of the spot welding needles by itself,and automatically detect the length errors of the welding needles
Ithas the function of one-click restoration to the factory settings
Itis standardly equiped with a 10,000Atransistor welding power supply
一、Main function
Combired automatc weldingofcfindica batres
二、Product characteristics
Automalic welding,solder joints are even,good onsistency,improve the gualfcahion rate.
Standard spot welding spot can be selected (different currents can be set for positive and negative poles)
Spotwelding coordinates can use Udisk to import parameters
The operating mechanism adopts servo motor with linear module for
Al can learn to set the welding positions of the spot welding needles by itself,and automatically detect the length errors of the welding needles
Ithas the function of one-click restoration to the factory settings
Itis standardly equiped with a 10,000Atransistor welding power supply
三、Product parameters
Power | AC220V 50/60HZ 5KW | Maximum stroke | X轴：200 - 630MM Z轴：5 - 70MM Y轴：200 - 390MM R轴：0 - 105° Xaxis:200-630mm Xaxis:5-70mm Yaxis:200-390mm Yaxis:0-105° | ||
Air pressure | 0.4-0.8Mpa,Air source must be used when there is a fiter device to ensure that the flow of water-free impurities. | ||||
Suitable for nickel sheet thickness | (0.15-0.2MM thickness nickel sheet needs to be slotted) | ||||
Standard spot welding power | BT-10000A transistor welding power supply | ||||
Bump welding nickel sheet0.21-0.4MM | |||||
Welding output curent | Max 10000A | ||||
Suitable for spot welding pins | Imported diameter 1.7*100MM(spot welding) | ||||
Spot welding data | CAD data import/dot matrix data import/manualinput | ||||
Imported diameter 4-4*6 flat-head welding needle (for bump welding) | |||||
| Operating power | Servo electic | ||||
Adaptive range | 14430/14500/18500/18650/21700 26650/26700/32050/32700/32140 | Equipment dimensions | L1630*W1050°H1780MM | ||
Droductiyt | About 4000PCS5000PCS elshour | Weight | 480KG | ||
